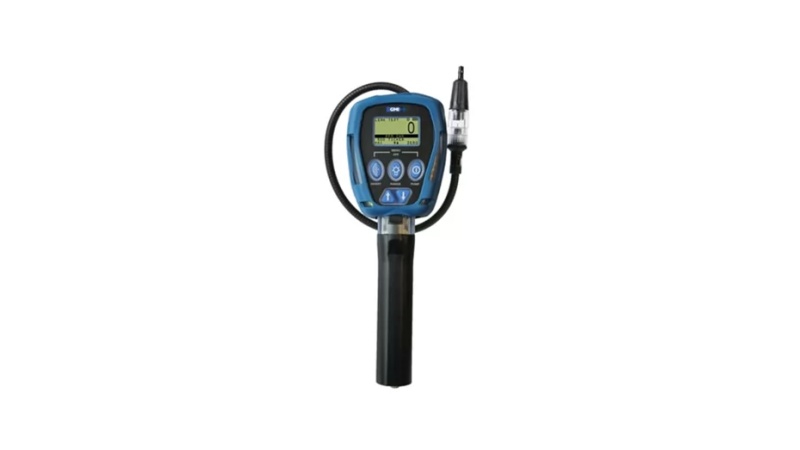

GMI GT-40, GT-41, GT-42, GT-43 & GT-44 Portable Gas Detectors

Get a Quote Now

Description

Reviews

Product Features

Seven modes of operation
Methane leak detection from PPM to Volume gas with ultrafast ppm response
Optional O₂, CO, and H₂S ranges
Manual and automatic data logging
'Ticker' (Geiger) indicator on ppm range (visual and audible)
Flashlight and pressure range

Seven modes of operation
Methane leak detection from PPM to Volume gas with ultrafast ppm response
Optional O₂, CO, and H₂S ranges
Manual and automatic data logging
‘Ticker’ (Geiger) indicator on ppm range (visual and audible)
Flashlight and pressure range

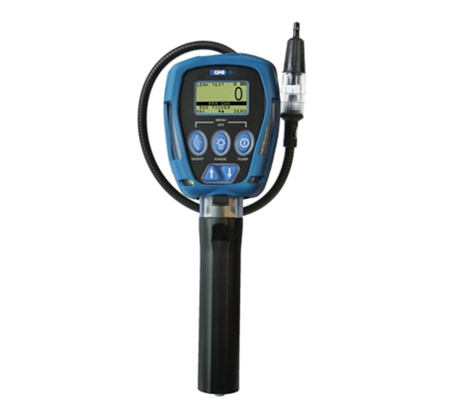

GT Series

The GT Series is a range of Portable Gas Detection instruments that combine quality, ruggedness and advanced technology in a user friendly, hand-held gas detector. It has been designed for the gas industry, satisfying all the needs of service technicians within a single unit.

Applications: Leak test, confined space entry, barhole testing, carbon monoxide, purge, sniffer pressure leak tightness

GMI GT Series is a multi-functional gas analyser range; each detector can be used for several different applications, eliminating the requirement for separate instruments for other jobs. Built to be durable and easy to use.

Seven functions are possible:

Leak test
Confined space entry
Barhole testing
Carbon monoxide
Purge
Sniffer
Pressure leak tightness

The Integral pump draws the sample in and includes a pressure sensor for gas flow detection. A hydrophobic filter protects the sampling system. Toxic gases are detected by electrochemical cells. Three sensor types detect methane: Semiconductor for ppm range, Catalytic Bead, 0-100% LEL and volume measurement by a Thermal Conductivity sensor.

Measuring Ranges

CO 0 – 2000ppm
H2S 0 – 100ppm
LEL 0 – 100%
O2 0 – 25%
CH4 PPM 0 – 10,000ppm
CH4 VOL 0 – 100%
0 – 60 in. (0 – 150 mBar) Water Gauge

Features

Multi-application Gas Detector
PPM, LEL and Volume range for CH4 leak detection
Manual or automatic data-logging
Audible visual ‘Ticker’ (Geiger) indication on ppm range
Alarms audible > 80db and visible LED flashing on both sides of the casing
Integral flashlight
Rechargeable or Alkaline battery (8 hours operation either). Charging is by plug or docking station
Complete with a rugged Polycarbonate case, IP54 rated suitable for outdoor use
Operating temperature -20°C to +50°C
Size not including probe: H 290 x W95 x D43 mm, weight 0.78 kg
Country of origin United Kingdom. Tariff number 90271010

Certifications

Certification	Description
ATEX	A product regulation which ensures the safety of equipment intended for use in potentially explosive atmospheres in the European Union.

CE	indicates that a product has been assessed by the manufacturer and deemed to meet EU safety, health and environmental protection requirements.

IECEx

The IECEx System is an international system for the safety of equipment installed in a potentially explosive atmosphere.

INMETRO

Brazil’s Instituto Nacional de Metrologia, Normalizacao e Qualidade Industrial, also known as INMETRO, is the body responsible for recognizing certification organizations, which should be responsible for certification of products for compliance and author

US Approvals: CSA (us), FM (us), ETL (us), UL (us)

A product regulation which ensures the safety of equipment intended for use in potentially explosive atmospheres in the United States

Gases

Symbol	Description
Combustible % LEL	Combustible Percent Lower Explosive Limit (LEL)

O₂

Oxygen

H₂S	Hydrogen Sulfide

CO	Carbon Monoxide

CH₄	Methane Gas Detectors
