KANE-AUTO600 Portable Diesel Smokemeter

Battery powered ,Diesel engine inspection
KANE-AUTO600 Portable Diesel Smokemeter
Get a Quote Now

Description

Reviews

Battery powered diesel smoke meter designed to meet official test standards.

Applications include:

  • Car & light commercial vehicle service
  • Public service vehicles
  • Fleet operators
  • Pre compliance testing
  • Local government air quality testing

Features

  • Fully portable, fast response smoke meter
  • A/C & rechargeable battery for up to 3 hours run time
  • Continuous, peak & average readings measuring K (M-1) & % (HU)
  • Record test results via infrared printer
  • Wireless easy to use handset
  • Self calibration after each test for accuracy

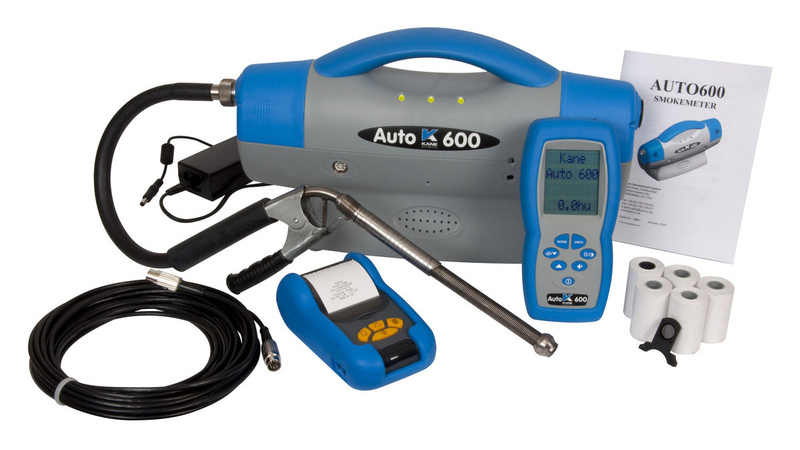

Box Contents

  • Handset
  • Smokehead
  • Probe
  • AC charger
  • Infra-red printer
  • Calibration filter
  • Printer rolls
  • Manual

BASE UNIT

Measurement Range 0 to 16k
Accuracy ±5% of reading or ±0.05k whichever is greatest
Warm up time In ambient of 20ºC, typically 12 mins
Dimensions 440 mm long
250 mm high
130 mm wide
Internal Supply 12Vdc Nickel-Metal Hydride battery rated capacity 7Ah
External Charger Supply Requirement 13-15Vdc at 4Amps
Fuse Rating 5A(T) time delayed, in 20*5mm form
Weight 4.6 kg

HANDSET

Dimensions 200 mm long
50 mm high
95 mm wide
Keypad Seven tactile keys
Display 4 line LCD with 8 characters a line, backlight and contrast control
Weight 0.4 kg
Battery type Non-rechargeable MN1500/LR6/AA alkaline cells x 2
Battery life (alkaline) 50 hours typically on Bluetooth comms.
75 hours typically on serial cable option

PROBE

Dimensions 270 mm Insertion Depth
Weight 0.5 kg

BATTERY MODULE

Type: NiMh rechargeable (12V, 7AH)
Life: 4 hours from full charge
Charge time: 4 hours

BATTERY CHARGER

Input: 100-240V AC. @ 47-63Hz
Output: 15 V dc @ 4 amps

Ambient Operating Range

-10°C to + 45°C
